Medical Equipment

Audiometer

Audiometer Educational Trainer

Audiometer Frequency selection in six positions 250, 500, 1000, 2000, 4000 & 8000 Hz ±, Hearing loss in dB selection in steps -10 to 80dB ±, Masking selection- No masking, Right & Left. Masking adjustable, Audible Visible Indications. Output EP for Head phone Right & Left, Patient response switch, Audio Output 4mm Sockets, Test point, Power Supply 230V 50Hz, Dimensions 250 X 300 X 100mm±

Study on SKRIP Audiometer

Study of Audio frequency, dB responses, tests ability to hear sounds Study of Hearing Loss. Tests both the intensity and the tone of sounds, balance issues, and other issues related to the function of the inner ear, also measure ability to discriminate between different sound intensities, recognize pitch, or distinguish speech from background noise.

Other Models of Audiometer

01. SE2146SKRIP-AUD-ANAudiometer

02. SE2147SKRIP- AUD-UCAudiometer with Microcontroller

03. SE2148 SKRIP- AUD-USBAudiometer with USB

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting , Experiments list,

Bio signal Simulator

Bio signal Simulator with ECG -5 Leads, Heart Pulse, and EMG & EEG output. Useful for testing ECG, EMG, EEG Amplifiers, Defibrillator & Pacemaker, Monitors and Recorders & also for the ECG, EMG & EEG related system. Also it is useful for student project testing. Using this can be test instruments amplifier, gain of instrument, performance & etc. Output through universal Socket.

Supply 230V/ 50Hz, Dimension 300 X 100 x 250mm±, Standard Accessories

BP Cal & Measurement

Blood pressure Calibration & measurement Trainer

Real time BP measurement using Sphygmomanometer, Aneroid (Dial), Digital

Sphygmomanometer

Hg Scale 0 to 300mmHg, Mercury 99.99% Purity, lock & Release Valve

Aneroid (Dial)

Hg Scale 0 to 300mmHg, Valve lock & Release Valve

Digital

Oscillometric Measurement,

Pressure Range 20~280mmHg, Pulse 40~180 Beats/Minute,

Sensor Semi Conductor, Automatic Air Release Valve

Arm Circumference Adult 24~36cm, LCD Display

Built in power Supply, 230 Volt, 50Hz. Dimensions 250 X 60 X 250 mm. +

Standard Accessories

Study on SKRIP BP Cal & Measurement

Study of BP Measurement using different technique. Study of Sphygmomanometer, Aneroid (Dial), Digital Bp Apparatus. Comparer the pressure sensitivity, Readings, Stability, Accuracy. Effect of applied pressure on

Blood Flow. Etc

Other Model of BP Measurement

SE2191 SKRIP-BPM-1P Blood Measurement Oscillometric

SE2192 SKRIP-BPM-3PBlood Measurement 3 Method

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.

Application

Testing & Calibration of any Make ECG Recorder, Monitor, Defibrillator, Amplifier & ECG Related any Machine. It can be use for Electrodes wire testing of ECG Machine. Etc

Advantages

Directly connect to any machine, No need any external Connection, No need Calibration, Portable, Single Button Use. Anyone can Use. No need training.

Bettor for Hospital, Repairing Center, Manufacturer, Testing & Calibration Lab.etc

Technical Specifications

Compact & Portable.12 Lead 4 Arrhythmia - Bradycardia 30, Normal 60, 100, Tachycardia 120. Standard PQRST Waveform, Feather Touch Arrhythmias selection, LED indicates for each Arrhythmia. 10 Leads- RA, LA, RL, LL, & V1-V6 with Universal Sockets.1V±output through 2mm socket for DSO & other application. Operating Voltage DC Voltage 12V adaptor. Optional PC connectivity

Other ECG Simulator Models

01. SE1501ECGS-12L-4A-PECG Simulator Portable12L.4A

02. SE1502ECGS-12L-TECG Simulator Table Model

03. SE1503ECGS-12L-15A-PECG Arrhythmias Simulator 12L, 15A

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, & etc.

EEG Amplifier 10-20 Method Single Channel

EEG 10-20 Method Single Amplifier Real time Trainer

Electrodes placement select by Mode & Right & Left switch. High Pass, Low Pass, Notch Filters, Gain Adjustable, Output 0 to 10V. Mode EEG Left, Right & Self Test. Channel selection 1 to 8 Right & 1 to 8 Left. Disc & Disposable Electrodes, EEG, DSO output through 4mm socket. Power Supply 230 ±10%, 50Hz, Dimensions 305 X100 X 250 mm±

Study on SKRIP EEG Amplifier

Study of electric potentials generated by the Brain. Study of patterns as Beta, Alpha, Theta, and Delta.  Study & Analyses of Neurology  & signal processing Placement of Electrodes 10-20 Method, Amplification, Filters, Gain, Self-Test & Frequency responses & etc.

Other EEG Models

01. SE2121SKRIP-EEG-3LEEG Amp. 3 Lead Electrodes

02. SE2122SKRIP- EEG-10-20-3L-1A EEG Amp 10-20 method Single1Ch

03. SE2123SKRIP-EEG-SA-10-20-3L-1A EEG Amp 10-20-1Ch + Simulator

04. SE2124SKRIP-EEG-10-20-3L-1A-USB EEG Amp. 10-20-1Ch with USB

05. SE2521SKRIP-EEGS-SA-3L  EEG Simulator

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.

EEG Simulator Trainer

Testing & Calibration of EEG Machine,

Rhythms Selection, Delta (), Theta (), Alpha (), Beta (), Gamma (), Amplitude adjustable 0 to 10mV±, Output Lead A, G & R, Differential Output. Output Universal socket Button Type, Output to amplifier, recorder or EEG monitor or DSO, Light Red, Blue & White light for Eyes activity. Power Supply 250V, 50Hz, Dimensions 250 X 75 X 250mm±

Study on SKRIP EEG Simulator

Study of Signal Patterns. Normal rhythms, Adjustable rhythms,

Other EEG Models

01. SE2121SKRIP-EEG-3LEEG Amp. 3 Lead Electrodes

02. SE2122SKRIP- EEG-10-20-3L-1A EEG Amp 10-20 method Single1Ch

03. SE2123SKRIP-EEG-SA-10-20-3L-1A EEG Amp 10-20-1Ch + Simulator

04. SE2124SKRIP-EEG-10-20-3L-1A-USBEEG Amp. 10-20 with USB 1Ch

05. SE2521SKRIP-EEGS-SA-3L  EEG Simulator

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting , Experiments list,

Solid State Electro Cautery Trainer

Modes Monopolar & Bipolar, Cut, Coug. Bicoug, Operating frequency 350 KHz.±

Output power 250 Watt ± / 500 Watt ±. Controls Output power Cut / Coug. Bicoug., Unipolar, Bipolar, Pure Blend, Audio, foot switch. Electrodes Mono-polar, Bipolar and Patient plate. Output socket 4 mm for CUT / COUG, Bicoug, Patient plate, Pencil Switch & jack for Foot switch. Alarm Patient Plate open Audible and Visible alarm, Audio & Visible indication for Cut, Coug. Bicoug.

Accessories Patent Plate, Unipolar & Bipolar Electrodes, Handle, Set of Electrodes, Foot switch, Pencil Switch. Test point on the top of instrument through 2mm socket

Supply 230V/ 50Hz, Dimensions 375 X 150 X 300 mm±

Study on SKRIP Solid State Electro Cautery

Study of Solid State Electro Cautery Machine. Study of Principal & Operating Procedure. Study of Electrodes, Monopolar & Bipolar, Pencil Switch, Foot Switch, etc. Study of different Modes & application of each Modes. Difference between bipolar and monopolar techniques.

Other Modes of Solid State Electro Cautery

01. SE2251SKRIP-SSE-50WOphthalmic Solid State Electro Cautery

02. SE2252SKRIP-SSE-250/500WSolid State Electro Cautery 250/500W

03. SE2253SKRIP-ANLSurgical Analyzer

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.

EOG Amplifier 3 Lead with USB BIOWAVE

Bipolar Real Time EOG Amplifier 3 Lead Trainer

3 Lead Electrodes placements Active, Reference & Ground. Electrodes Disc with Velcro & Disposable Electrodes. Mode Self Test & EOG, Gain & Self-Test Adjustable. LED indication, DSO output through 4mm socket. Test Point on Top. Power Supply 230 ±10%, 50Hz, Dimensions 305 X100 X 250 mm±

Study on SKRIP EOG Amplifier

Study of electric potentials generated by the eyes movements of a stationary subject. Detection Moment Right, Left, Up & Down. Study of Pick voltage & Duration of Moments    & signal processing Placement of Electrodes, Amplification, Filters, Gain, Self test, Voltage & Frequency responses & etc

BIOWAVE Software

Software for measurement of EOG single. To measure Voltage, Time & Frequency of Signal Pattern. Setting Voltage & Time Expand the signal, Save As, Open, Print, etc. For advance study Excel values, offset setting, etc

Other Model of EOG

01. SE2126 EOG-3L EOG Amplifier 3 Lead Electrodes

02. SE2127EOG-SA-3L EOG Amplifier 3 Lead with Simulator

03. SE2128EOG-USB-3L EOG Amplifier 3 Lead with USB BIOWAVE

04. SE2526EOGS-3L EOG Simulators

05. SE2527EOGS-3L-LT EOG Simulator with light simulator

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.

GSR Meter with USB Trainer

Real time GSR. Operating Principal Conductivity

Reusable Finger Disc Electrodes with Velcro. Measurements Dc & AC level. Adjustable Balance Zero set Sensitivity & Gain. Visual Indication Analog Meter & LED for Pick Response. Two output I & II output with meter indication. Test point on top of instrument. Power Supply 230 V /50 Hz, Dimensions 300 X 100 X 300 mm±, Wight 1Kg±

Simulator

GSR Simulator to calibrate or to test GSR Meter. Output socket of simulator Button Female Type. Knob or selector switch to adjust or to set output.

Study on SKRIP GSR Meter

Study of electrical properties of a skin i.e. GSR (Galvanic Skin Response). Galvanic Skin Response biofeedback. Instant change in skin & signal processing Placement of Electrodes, Amplification, Filters, Gain, Voltage & Frequency responses & etc

BIOWAVE Software

BIOEAVE software measurement of GSR activity. Software with measurement of Voltage, Time & Frequency. Voltage & Time expand the signal, Save As, Open, Print, Excel values, offset setting, etc

Other Model of GSR

1. SE2142SKRIP-GSR-FEGSR Meter with Finger Electrodes

2. SE2145SKRIP-GSR-FE-USBGSR Meter with USB

Hemodialysis Machine

Hemodialysis Machine with microcontroller based Demo. Type Trainer

This kit with Dialyzer, Blood Tank (Beaker), Heater, Parasitic Pump (Blood Pump), Dialysate Pump.  Standard adult Dialyzer.1000ML two Blood Tank, Heater 250W± 500ML ±with control & indication, Parasitic Pump (Blood Pump) with standard pipe set with speed control. Dialysate Pump with flow control.

This is Demonstration type unit with all accessories. Dummy Blood & Dialysate. Microcontroller based system with LCD Display 16X2, Key Board Set, UP, Down, Enter. Indication High & Low Indication Temperature & Blood Pump. Detector Blood Leak & Air bubble. Temperature Controller 0 to 400C± using PT100 sensor.

Study on SKRIP Hemodialysis Machine

Study of Hemodialysis Machine, Study kidney, Study of Blood pump, Measure the Maximum & Minimum Speed of Blood Pump with & without load. Study Flow Dialysate & Blood Flow. Study of Detectors, Temperature Sensor PT100,

The Instrument with

Dialyzer, Blood Tank -2, Heater, Parasitic Pump (Blood Pump), Dialysate Pump, Detector Bubble & Blood, Display Board, Pt100 Sensor, Pipe set-6, Micro-control unit & etc.

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting , Experiments list,

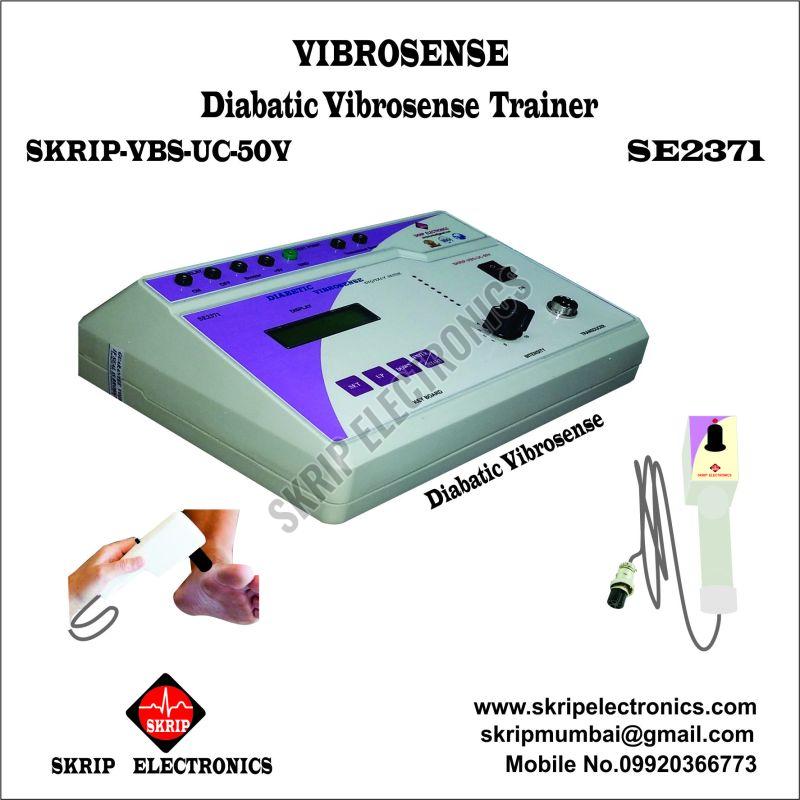

Vibrosense

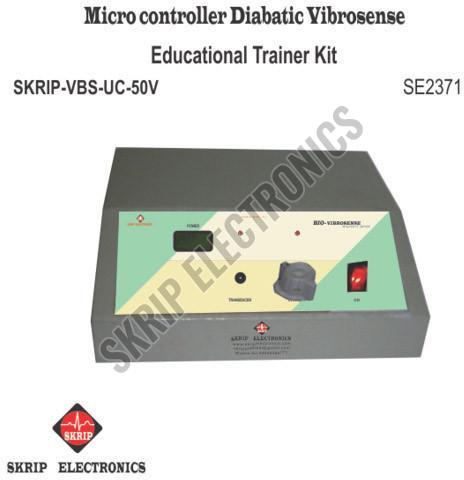

Diabetic Vibrosense Educational Trainer

Microcontroller based system, LCD Display 16X2, Time Duration control 0 to 15 minutes, Intensity 0 to 50V±, Key Board for setting time-Set, UP, Down, Enter & Start Keys, Indication LED Bar & Buzzer, Transducer with Switch (Hold Switch) & Indication.  DSO Output 2mm Socket, Test point on the top of instrument.

Power Supply 230 ±10%, 50Hz, Dimensions 2276 X 83 X 200 mm±

Study on Verbosene

Study of Placement of Transducer. Measuring the electrical activity generated by the Transducer. Study of Human Body Vibration sensitivity. Study of Diabetic Patient & Normal Person. Study of Sensitivity of Human Body.

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.

Optional PC connectivity

Student Physiograph with 6 Channel. ECG/ EEG/EOG/EMG/PCG/GSR /RRM/ PMG/TEMP (any 6 or 9 by Switch). This is PC interfacing with test point on the top of instrument for each Signal output.

A. Features

Indigenous Digital Student Physiograph. It is Compact light weight and easy to operate by a beginner. On screen 6 channels select. By external switching can be set up to   Input 9 Signal. Unit having PC Interfacing’s USB output. Online recording data. Off line Data Read, Measurement Voltage, Time & Frequency. SKRIP “BioWave” software for PC. Signal Select, Print, Open, Save As, Start, Close, Exit, Offset Setting, Multicolour Signal Wave,

B.    COUPLERS

No couplers, Direct connect electrodes or transducer to instrument through 5 Pin & EP Pin. Inbuilt all amplifier with inbuilt power supply. Operating Voltage 230V/ 50Hz. Each signal has test point on top of Instrument to connect output to DSO &USB.

C.    TRANSDUCERS

Select Transducer Heart Pulse, Respiration, PCG, Blood Pressure, Pressure, Temperature-PT100 and Strain-gauge.

D. ELECTRODES

ECG, EEG, EMG,

E.   ACCESSORIES:

Disposable - 50 no’s Electrodes box- 2 no, ECG jelly – 1 bottle,

Connecting Wires, Mains Cord, Operating Manual, etc.
